Description

Lunette FPV LS-800D G 40CH 5 pouces 5.8 pouces HD DVR, Kit de casque vidéo pour Drone de course RC, Transmission quadcopte multi-coptes, 4.3



Product introduction:



1. FPV glasses: it is used to receive the video signal wirelessly transmitted from the aircraft in real time during the flight of an aircraft model and display it in the glasses, which can make you have an immersive sense of flight. It is often used in speed crossing flight competitions. Those who have seen Star Wars know that there is a crazy scene of suspended car racing. This glasses can realize this kind of on-the-spot pressure!

2. Snowflake screen: it means that when the signal received by the monitor is weak or there is no signal at all, the screen will not be blue or black, and there will always be some vague images displayed, so that there will be enough time to operate the aircraft to return when flying beyond the visual range.

3. FPV video glasses are an entry-level 5.8G wireless integrated head mounted display. They are ergonomically designed, light and comfortable to wear, and can be easily replaced with external 7-19v batteries; The display effect of large screen, vision-330 head mounted video monitoring system, which integrates 5.8G full band receiving function. The power supply voltage of this product is 7~19v, which is special for JST interface aircraft model



Dual antenna interface, mushroom head and rod-shaped dual antenna, continuous comparison between the two receivers, select the one with good signal, and display it after signal conversion and amplification

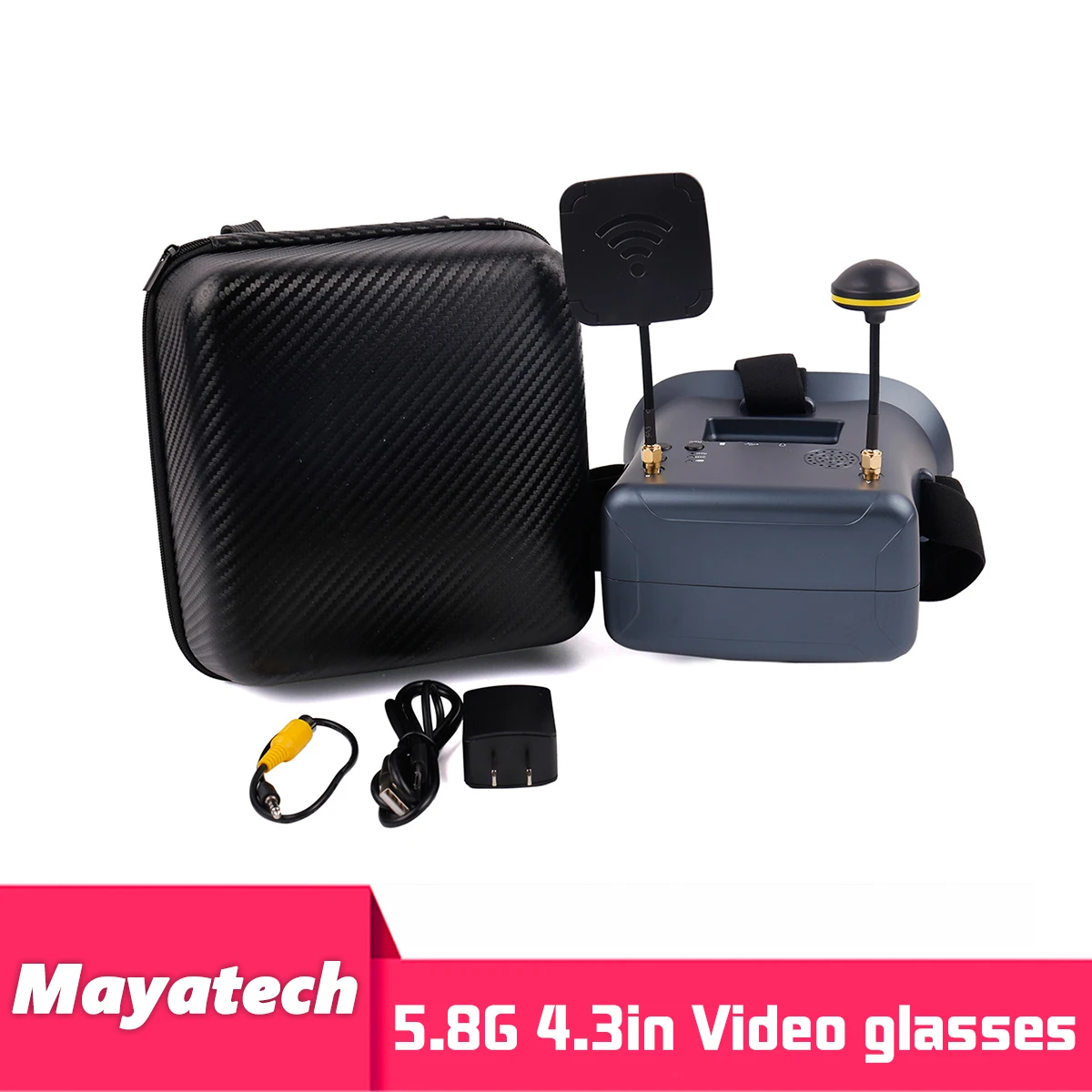

Product list:

1× 4.3 inch FPV glasses

1× glasses storage bag

1× mushroom antenna

1× flat panel antenna

1× instruction manual

1× charger

2× connecting wire



Product features: first choice for entry

1. Dual antennas receive at the same time, and the signal is stable

2. Built in DVR recording function, supporting 32g memory.

3. Built in 3.7V 2000 MW battery, each charge can support 3 hours of work.

4. USB interface for fast charging.

5. USB data export.

6. Small size and light weight.

7. Support multiple languages.

8. Multi function menu.

9. One click search frequency.

10. The surface technology is metal light sensitive paint.

11. With portable zipper pouch.

12. Support media formats JPG, PNG, JPEG, AVI, MOV, others



Product information：

• Size: 155x144x113mm

• Weight: 323g (including built-in battery)

• Screen size: 4.3 inches

• Screen resolution: 480 * 272

• Screen brightness; 300cd per square meter, equipped with special high brightness backlight LED for outdoor FPV

• Viewing angle: 12 o’clock

• Transparency 92% does not distort light



Support USB interface fast charging





Support TF 32G memory card (memory card is purchased separately)



The antenna interface at the glasses end is an internal pin



The antenna end interface is an inner hole



Multi function menu, supporting multiple languages





Operating instructions

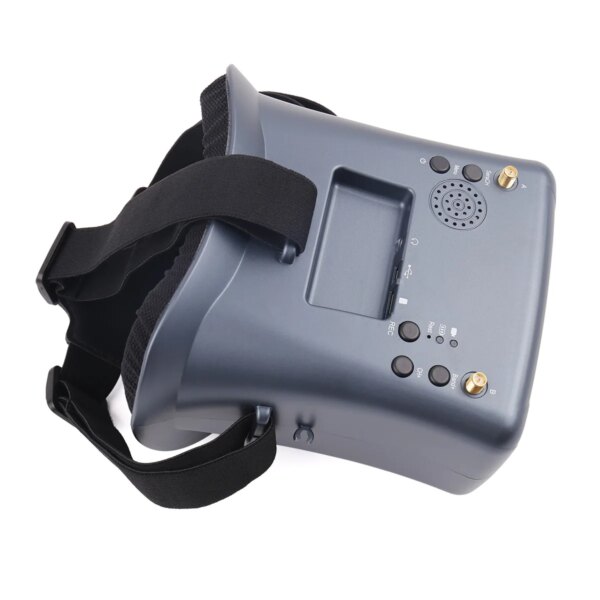

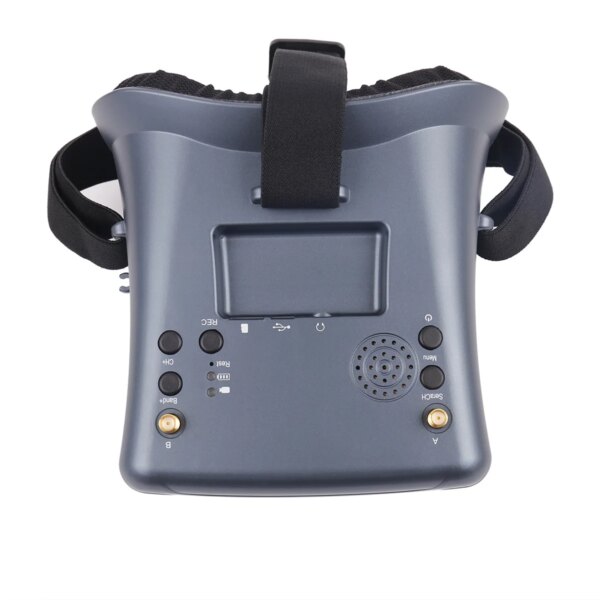

Key

1.K1_ SearCH/AV

In the default mode, short press to automatically search the signal to a certain signal strength and stop on the channel

Long press the switches RF MOD and AV MOD, and in the playback mode, press the jump volume to adjust OSD

2.K2_ MENU/POWER

In the default mode, short press the menu OSD, long press 3S to close / open, and then press this button to return

3. K3_ REC/PLAY/OK

Default mode, short press recording / stop; Long press play mode; When the menu is pressed, this button is confirmed

4. K4_ BAND+/VOL+

Default mode, short press band + select top A, B, E, F, R cycle selection; Long press volume – control

5. K5_ CH+/VOL-

Default mode, short press CH 1-8 circles; Long press the volume control +, press the menu, and this button is the next key

playback

Call menu to select playback (short press K1 button to call menu, and use K3 button to select playback mode; or long press K3)

Review / replay in playback mode (play, short press K1, zoom out, adjust OSD)

Buttons have different functions in playback mode

Record file: AVI PAL (694*576PX, NTSC(694*480PX)

Support 32g TF Card

K2: play menu (volume control / file deletion)

K4: up / fast backward

K5: down / fast backward

K3: Select / play / pause

K1: exit playback mode

Note: if it is not used for a long time, please charge it every four months to protect the battery





One click search frequency point

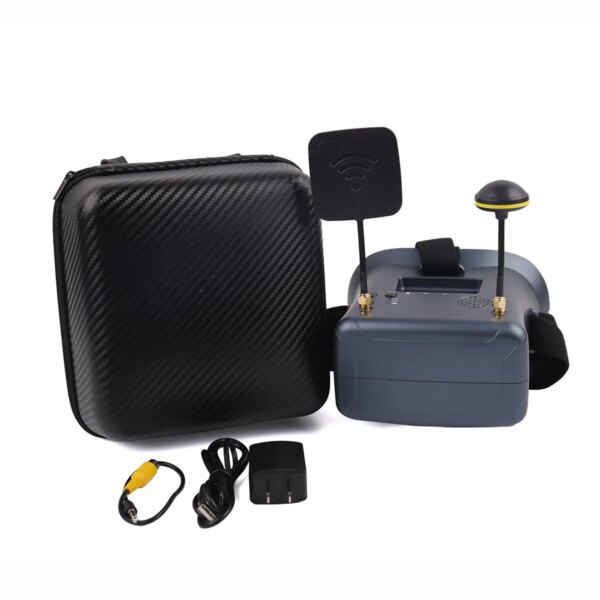

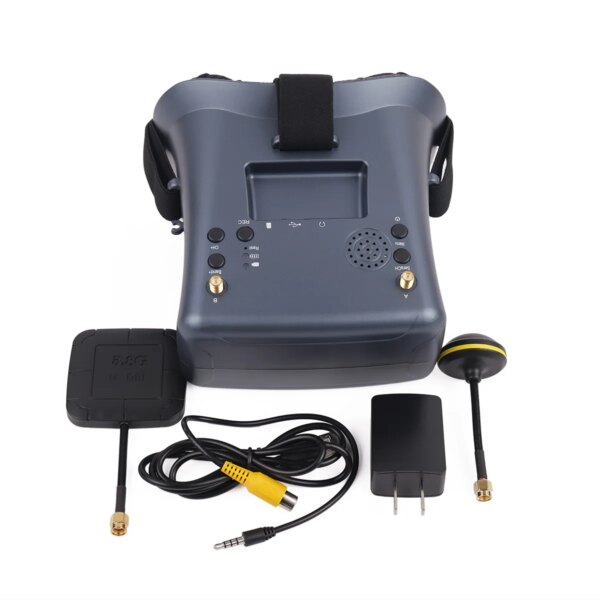

All accessories：



Product use effect drawing：

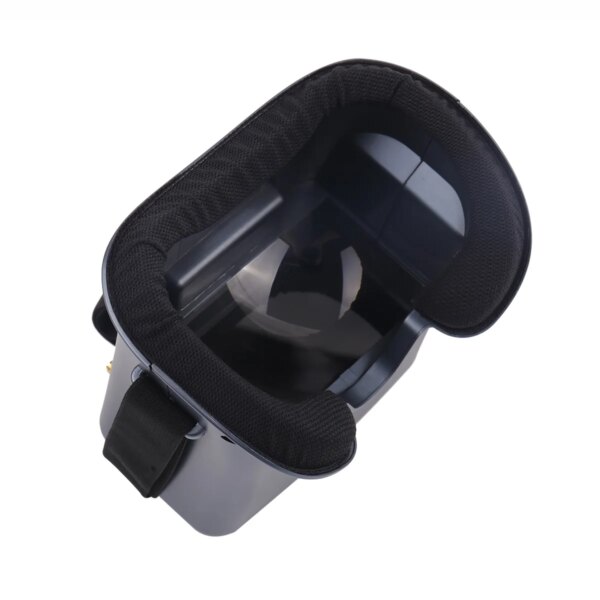

Product display：
